>> Product Description
Ozone Destruction Catalyst (MINSLITE-B)
Ozone destruction catalyst can decompose ozone into oxygen at room temperature without consume any energy. The decomposed ozone concentration is less than 0.1ppm (Normally, no ozone can be detected in the purified gas), which meets the requirements for ozone emission.
Ozone destruction catalyst has high strength and high specific surface area, it can withstand high temperature, does not contain flammable components and volatile components, there is no risk of burning at high temperature, which is safe to use, and will not cause secondary pollution. The content of active ingredients is as high as more than 80%, the performance is stable, the life is long, and it is not easy to lose.
The raw materials and production process of the product are completely independent and controllable, and can be supplied stably for long-term.
>> Product Parameter
|
Minstrong Ozone Destruction Catalyst (MINSLITE-B) Technical Data
|
|
Type
|

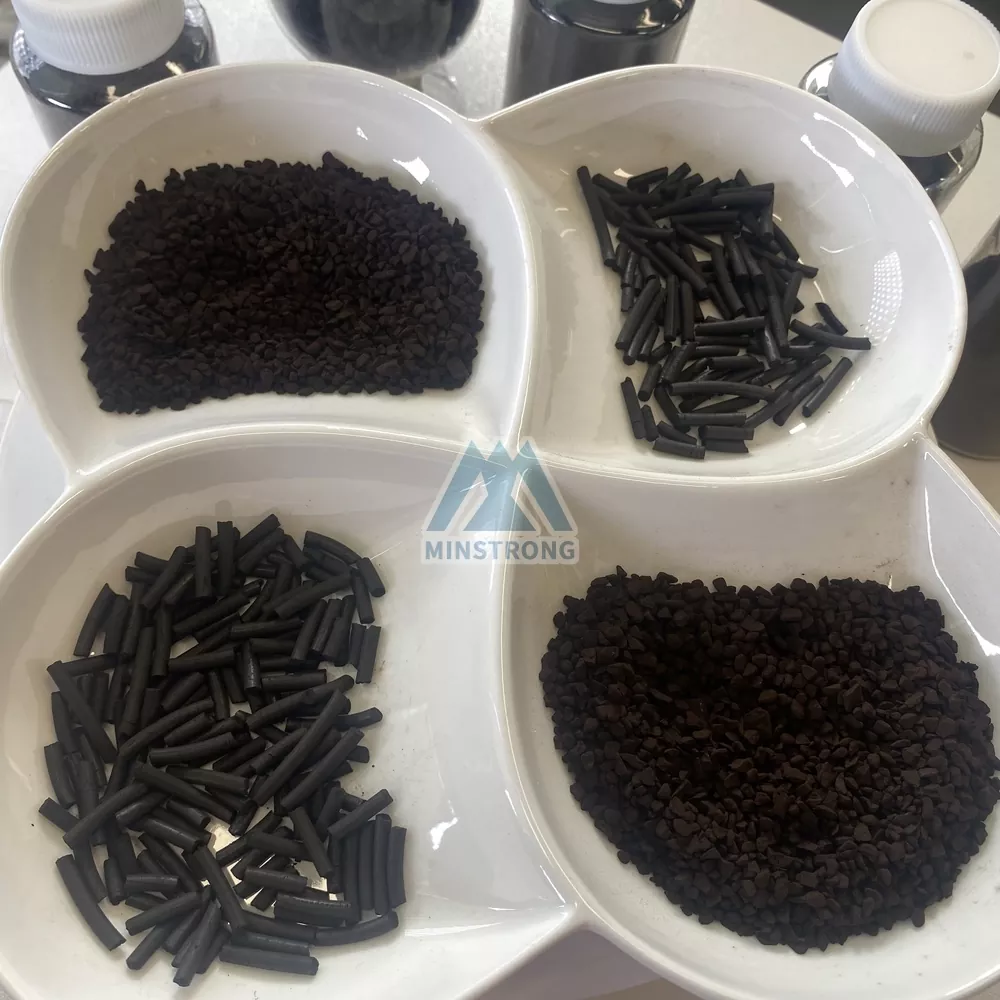

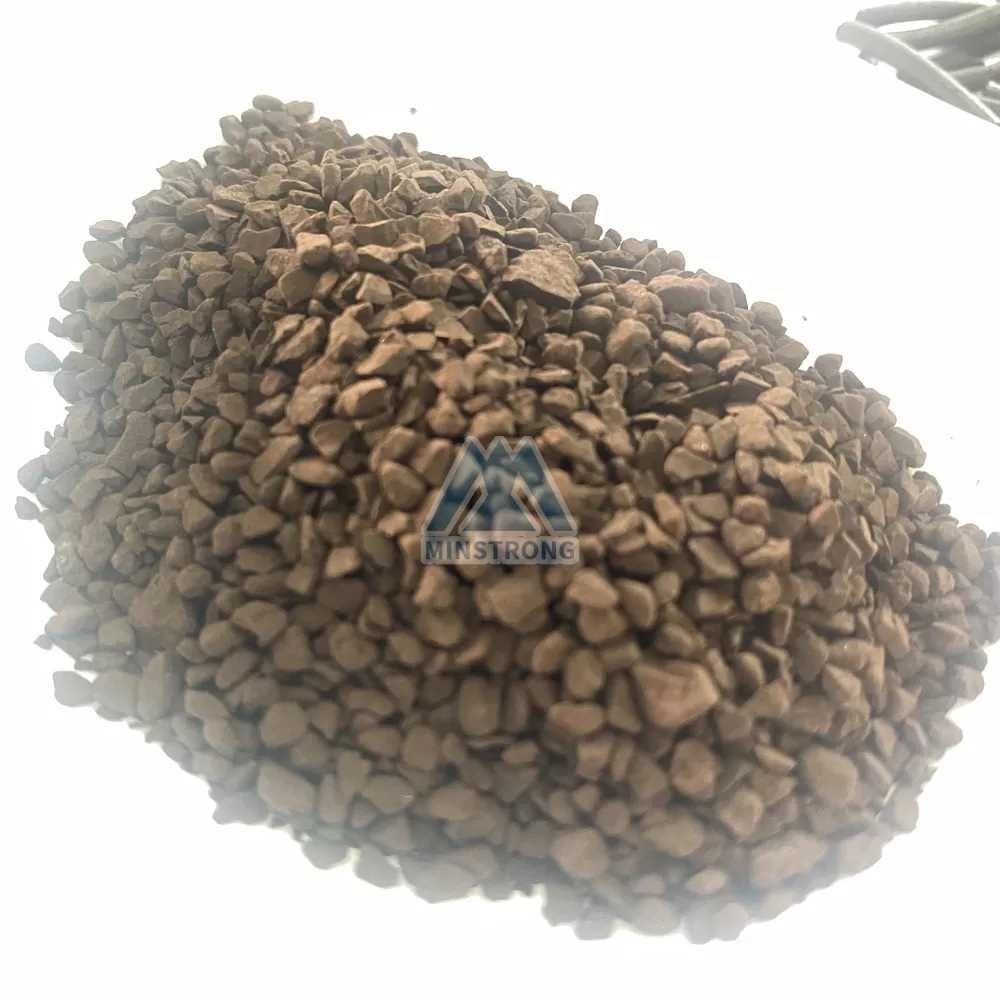

Particle Granule, Pellet Columnar, Powder, Honeycomb (Other shapes can be customized)
|
|
Active Effective Constituent
|
70-100% （Different specifications have different contents）
|
|
Strength
|
80-200 N/cm
|
|
Specific Surface Area
|
160-240 m2/g
|
|
Density
|
0.7-1.0 g/ml
|
|
Adaptable Temperature
|
≤500 ℃
|
|
Space Velocity
|
1000-50000 /h
|
|
zone decomposition ability per Hour
|
≥ 800.0 mg/g
|
|
Ozone decomposition efficiency
|
＞99.9%
|
|
Catalyst customization
|
available
|
|
Size Specification Available
|
|
Type
|
Description
|
|
MINSLITE-BC01
|
φ 1.1mm
|
|
MINSLITE-BC03
|
φ 3 mm
|
|
MINSLITE-BC05
|
φ 5 mm
|
|
MINSLITE-BC06
|
φ 6 mm
|
|
MINSLITE-BC09
|
φ 9 mm
|
|
MINSLITE-BG01
|
4-8 mesh
|
|
MINSLITE-BG02
|
6-12 mesh
|
|
MINSLITE-BG03
|
8-14 mesh
|
|
MINSLITE-BG04
|
10-16 mesh
|
|
MINSLITE-BG05
|
12-20 mesh
|
|
MINSLITE-BP01
|

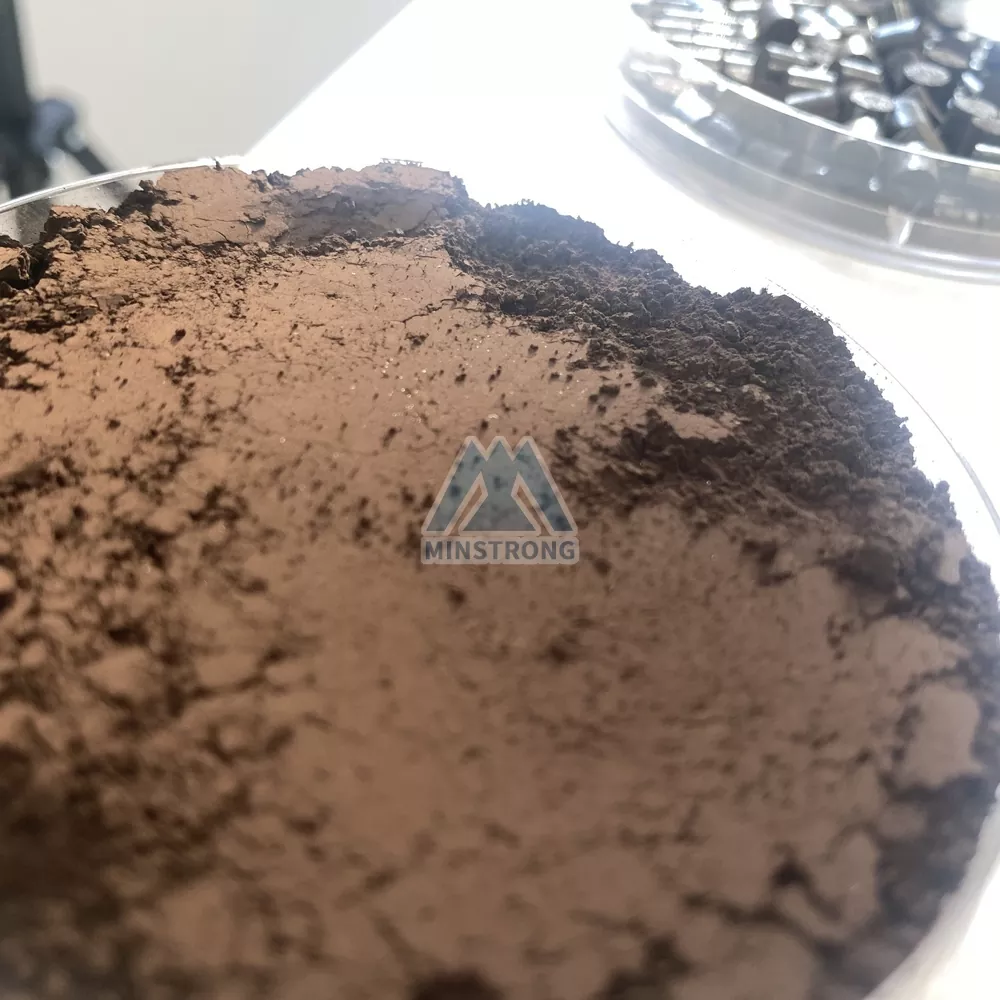

powder, 1-30um, D50(＜10um)
|
|
MINSLITE-BH01
|
honeycomb(100x100x50mm), activated carbon carrier
|
|
MINSLITE-BH02
|
honeycomb(100x100x50mm), ceramic carrier
|
|
Note: Catalyst specification parameters can be customized according to requirements.
|
If you don't find specifications you want
The above data are the specifications that Minstrong produces on a daily basis. We have a large inventory, and our products are continuously upgraded and expanded.
If you need other specifications, you can contact Minstrong. Customization is available.
If you don't know which type of catalyst to choose, you can contact Minstrong to help you choose the most suitable model and size.
>> Product Application
-
Ozone destroyer packing in drinking water and wastewater treatment systems.
-
Ozone purification produced by discharge equipment such as corona machines and printing machines.
-
Ozone purification produced by office equipment such as printers.
-
Ozone purification produced by UV and ozone disinfection equipment.
-
Ozone purification from chemical processing.
-
Any other application that requires ozone purification.
>> Product Application
-
1. Can I get catalyst samples?
We can provide samples, please contact us.
-
2. Is the catalyst of Minstrong suitable for my application?
Minstrong has catalysts with multiple functions, please contact us, we will help you choose the right catalyst.
-
3. I don't understand catalysts, how to achieve my desired goal?
Tell us the goal you want to achieve, and we will help you achieve the goal you want, and you don't need to know professional technology.
-
4. What should I do if I don't know how to use the catalyst?
Our engineers will tell you the correct use of catalysts, and free of charge.
-
5. I am interested in Minstrong catalyst, but what should I do if I am not sure about using it formally?
Minstrong catalyst has excellent performance and low price. We have enough successful experience to help you make a judgment, and we can also help you design a test plan, all of which are free.
-
6. I would like to know more about Minstrong Catalyst.
Please contact us to provide you with more detailed information.
-
7. How can the catalyst be successfully purchased and arrive at my warehouse?
We support many payment methods, and we have professional personnel responsible for the process of cargo transportation. No matter which country you are in, we can deliver the goods to your warehouse.
-
8. Can I get the catalyst quickly?
We have enough stock and strong production capacity to ship quickly, and we can deliver the goods to your warehouse by air. If you want to save the cost, we can also send the goods to your port or warehouse by sea.
-
9. How to get more help after receiving the catalyst?
After you receive the catalyst, you can contact us at any time to help you solve all your problems.
-
10. How much is the shipping cost?
Shipping costs vary depending on your specific address and shipping method, please consult us for details.
-
11. Can be shipped to our country?
We can sell in large quantities to global regions including Europe and the United States. M has obtained the license.
-
12. How to start orders or make payments?
You can send a confirmation by Inquiry or by Trade Manager, and we will send you Proforma Invoice with our bank details for your confirmation, and send it to your E-mail. You can make payment accordingly.
-
13. How to contact Minstrong?
Here is how we can be contacted:
Email: service.in@minstrong.com
Whatsapp: +8618142685208
You can also leave a message on the bottom to submit your contact information and simple requirements, and our engineers will contact you within 24 hours.
>> Packing & Delivery
General Packing: 25/120KG in iron barrel with plastic lining.
Packing based on user's needs.
For reguar size, quantity below 2 tons, Minstrong has enough stock and can deliver the hopcalite catalyst within 7 days.
For quantity above 2 tons, we can deliver the hopcalite catalyst within 7-15 working days.
Shipping Port: Guangzhou/Shanghai/other port as request
Express, Air transportation, ocean, railway and bus transportation are available.
>> Sample & Purchase Guide
-
You can get samples for testing, and any minimum order quantity is supported.
-
We provide discounts when purchasing more catalysts.
-
Payment method supported: T/T(bank transfer), L/C, Credit Card, PayPal, Western Union.
-
