>> Product Description

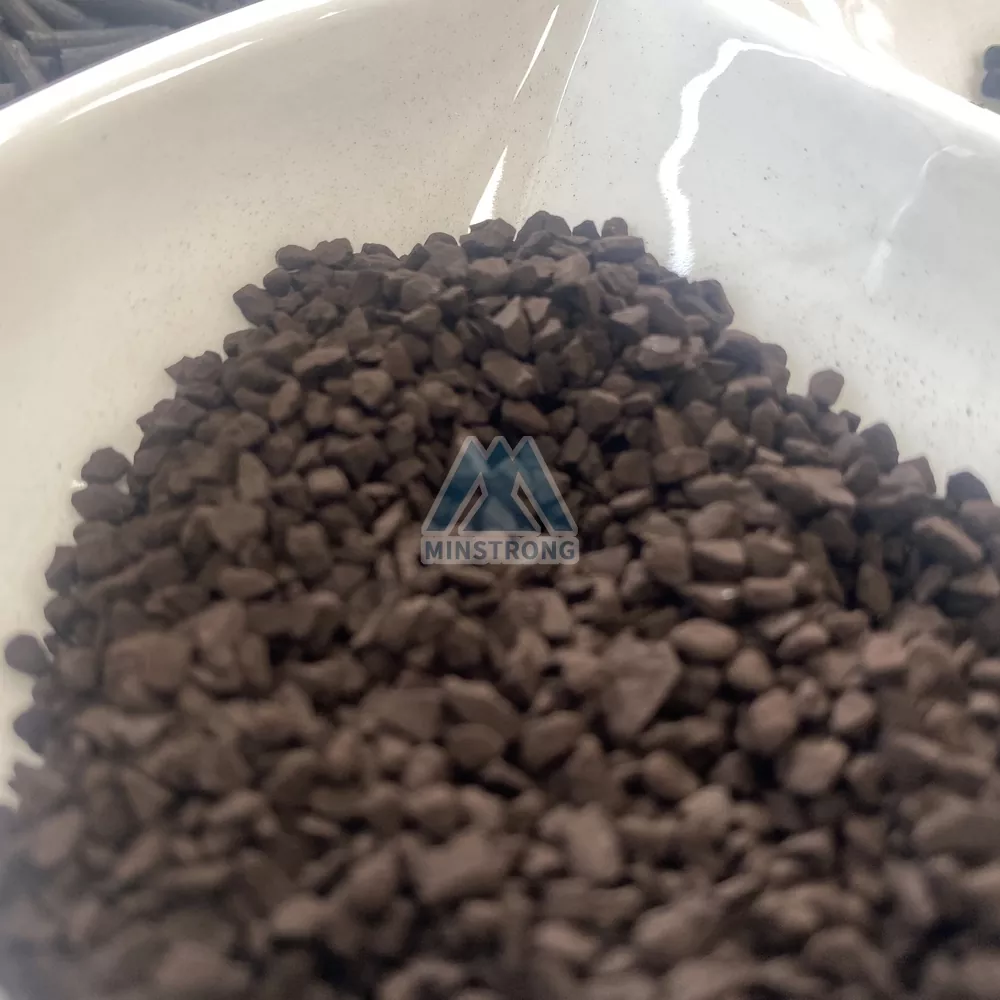

Granular Hopcalite Catalyst
Hopcalite is a mixture of copper and manganese oxides used as catalyst to convert carbon monoxide into carbon dioxide when exposed to the oxygen in air. Hopcalite also is widely used in dealing with ozone O3, VOC and other industrial waste gas.
Hopcalite catalyst produced by Minstrong has the characteristics of high efficiency, high catalytic activity, low cost and long service life.
It is widely used in gas masks, rescue respirators, mining refuge chambers, compressed air breathing equipment, scuba diving, and other industrial gas treatment.
The advantages of granular catalysts are very good performance and strength, with the highest active ingredient content (100%). This product is aimed at high-standard projects and can achieve goals that general catalysts cannot achieve.
The granular catalyst is composed entirely of active ingredients, can work stably under extreme working conditions, and has a longer service life.
In fact, in most countries, our customers use more granular catalysts, especially in large projects with extreme working conditions and strict requirements, which can bring extremely high customer satisfaction. For projects that want to achieve their goals perfectly, we recommend the use of granular catalysts.
>> Product Parameter
| Minstrong Granular Hopcalite Catalyst Technical Data | |
|---|---|
| Type |
4-8mesh, 6-12mesh, 8-14mesh, 10-16mesh, 12-20mesh (Other sizes can be customized) |
| Apperance | Black / Black Brown |
| Mn and Cu Mole Ratio | 2:1 - 4:1 based on application (Other ratio can be customized) |
| Mn and Cu Effective Constituent | 100% |
| Specific Surface Area | 160-240 m2/g |
| Abrasion Strength |
≥95% |
| Moisture | 1% max |
| Bulk Density | 0.7-1.0 g/ml |
| Catalyst customization | available |
|
|
|
| Size Specification Available | |
|---|---|
| Type | Description |
| HOPCALITE-G01 | 4-8 mseh |
| HOPCALITE-G02 | 6-12 mesh |
| HOPCALITE-G03 | 8-14 mesh |
| HOPCALITE-G04 | 10-16 mesh |
| HOPCALITE-G05 | 12-20 mesh |
| Note: Catalyst specification parameters can be customized according to requirements. | |
If you don't find specifications you want
The above data are the specifications that Minstrong produces on a daily basis. We have a large inventory, and our products are continuously upgraded and expanded.
If you need other specifications, you can contact Minstrong. Customization is available.
If you don't know which type of catalyst to choose, you can contact Minstrong to help you choose the most suitable model and size.
>> Product Application
- Gas mask / Fire mash & Refuge chamber: Hopcalite catalyst (CO removal catalyst) can be put into the filter layer of the gas mask or the gas scrubber of refuge chambers， so as to convert CO into CO2, to ensure the safety of personnel.
- High purity gas treatment: In the production of high purity gases such as N2 and O2, a small amount of CO is produced, and Hopcalite catalyst (CO removal catalyst) can remove CO at low temperature.
- Compressed air breathing equipment: Such as diving equipment, medical compressed breathing air, oxygen systems, converting CO into CO2.
- Compression systems and air separation systems: Convert CO in compressed gas into CO2 at low temperatures.
- Raw materials of catalyst: Used to produce various catalysts for purifying carbon monoxide.
- Coating material: As a coating for carriers such as ceramic honeycombs, make it has the function of eliminating CO.
- Instruments and laboratories: Purify the instrument's detection gas, adjust the zero point, and eliminate the interference of CO.
-
Ozone & VOC: Convert ozone into oxygen, catalytically oxidize VOC into carbon dioxide and water.
