>> Product Description

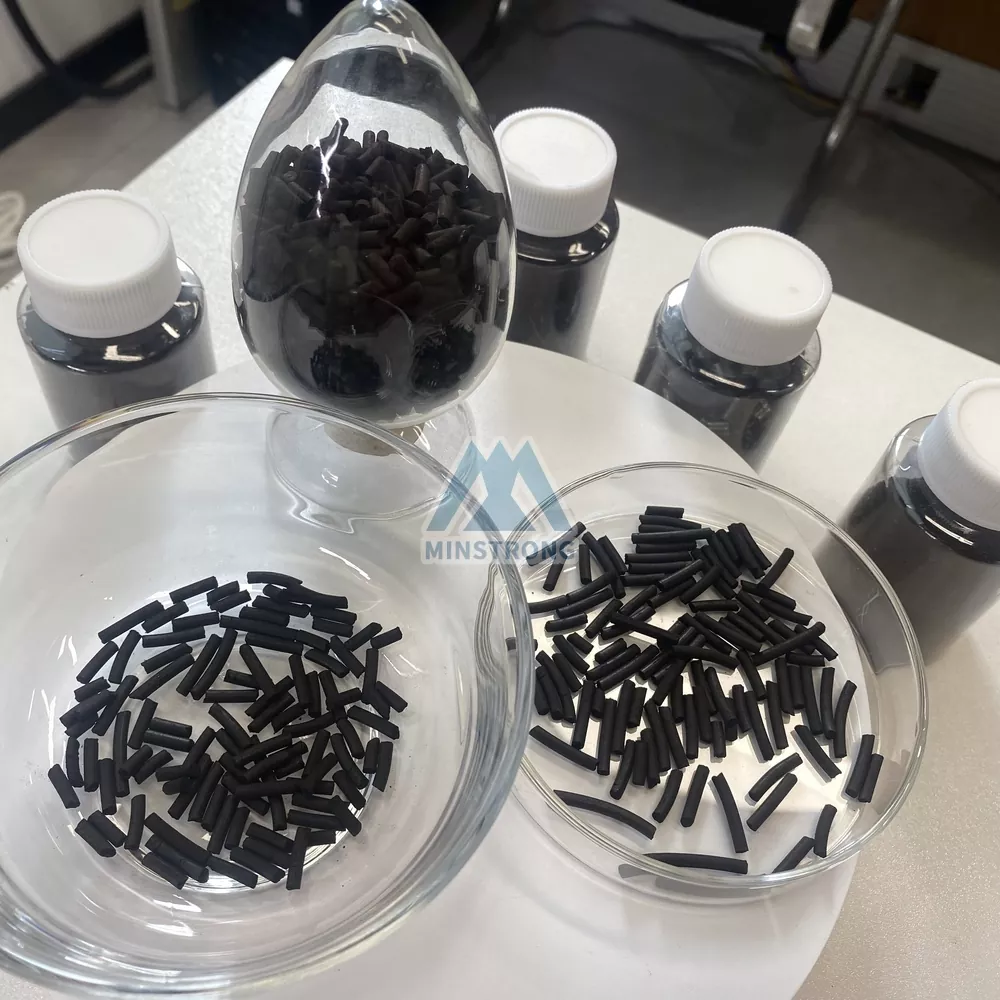

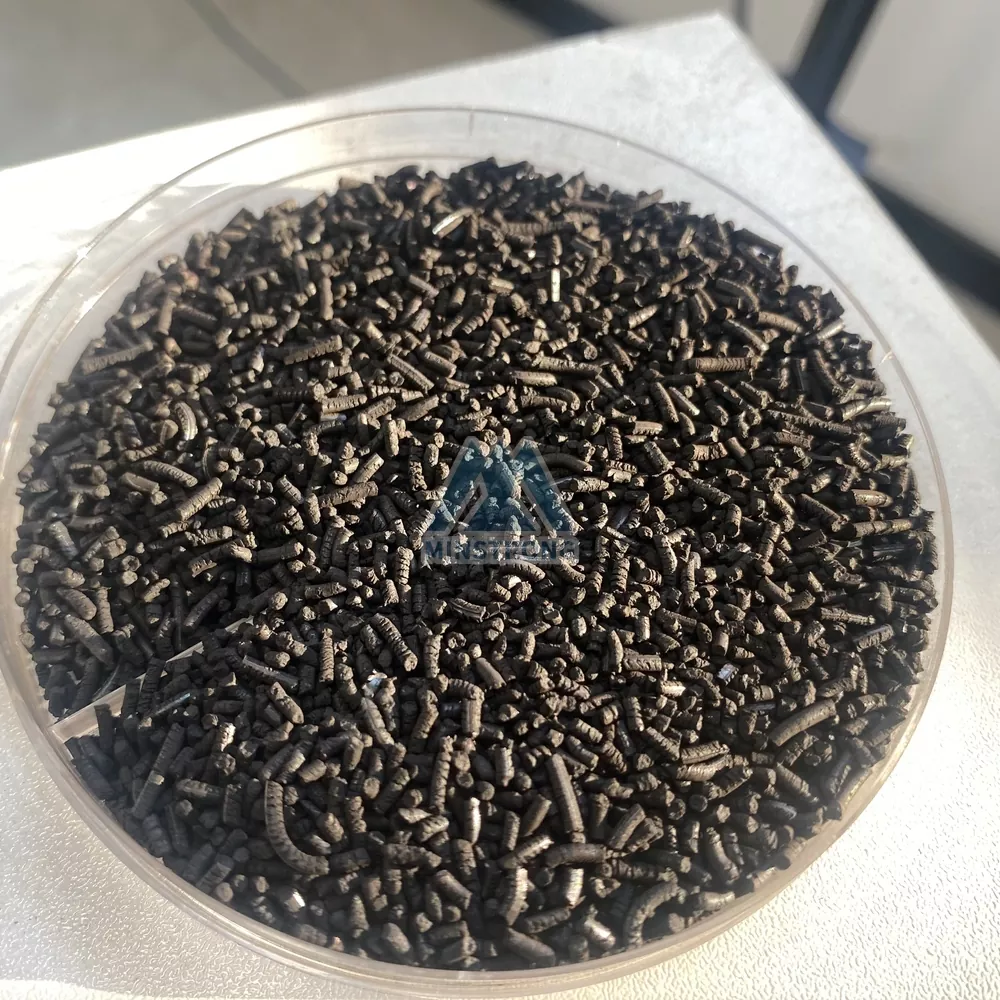

Pellet Hopcalite Catalyst
Hopcalite is a mixture of copper and manganese oxides used as catalyst to convert carbon monoxide into carbon dioxide when exposed to the oxygen in air. Hopcalite also is widely used in dealing with ozone O3, VOC and other industrial waste gas.
Hopcalite catalyst produced by Minstrong has the characteristics of high efficiency, high catalytic activity, low cost and long service life.
It is widely used in gas masks, rescue respirators, mining refuge chambers, compressed air breathing equipment, scuba diving, and other industrial gas treatment.
The advantage of pellet specifications is that they are relatively affordable and can meet the requirements of most projects. Minstrong provides columnar catalysts in a variety of sizes for different working conditions.
Pellet catalysts larger than 6mm have a crushing strength of over 200N/cm and will not break at higher wind speeds.
>> Product Parameter
| Minstrong Pellet Hopcalite Catalyst Technical Data | |
|---|---|
| Type |
Pellet 1.1mm, 3mm, 5mm, 6mm, 9mm (Other sizes can be customized) |
| Apperance | Black / Black Brown |
| Mn and Cu Mole Ratio | 2:1 - 4:1 based on application (Other ratio can be customized) |
| Mn and Cu Effective Constituent | 80-100% |
| Specific Surface Area | 160-240 m2/g |
| Strength |
50-200 N/cm |
| Moisture | 1% max |
| Bulk Density | 0.7-1.0 g/ml |
| Catalyst customization | available |
|
|
|
| Size Specification Available | |
|---|---|
| Type | Description |
| HOPCALITE-C01 | φ 1.1mm |
| HOPCALITE-C03 | φ 3 mm |
| HOPCALITE-C05 | φ 5 mm |
| HOPCALITE-C06 | φ 6 mm |
| HOPCALITE-C09 | φ 9 mm |
| Note: Catalyst specification parameters can be customized according to requirements. | |
If you don't find specifications you want
The above data are the specifications that Minstrong produces on a daily basis. We have a large inventory, and our products are continuously upgraded and expanded.
If you need other specifications, you can contact Minstrong. Customization is available.
If you don't know which type of catalyst to choose, you can contact Minstrong to help you choose the most suitable model and size.
>> Product Application
- Gas mask & Refuge chamber: Hopcalite catalyst (CO removal catalyst) can be put into the filter layer of the gas mask or the gas scrubber of refuge chambers， so as to convert CO into CO2, to ensure the safety of personnel.
- High purity gas treatment: In the production of high purity gases such as N2 and O2, a small amount of CO is produced, and Hopcalite catalyst (CO removal catalyst) can remove CO at low temperature.
- Compressed air breathing equipment: Such as diving equipment, medical compressed breathing air, oxygen systems, converting CO into CO2.
- Compression systems and air separation systems: Convert CO in compressed gas into CO2 at low temperatures.
- Raw materials of catalyst: Used to produce various catalysts for purifying carbon monoxide.
- Coating material: As a coating for carriers such as ceramic honeycombs, make it has the function of eliminating CO.
- Instruments and laboratories: Purify the instrument's detection gas, adjust the zero point, and eliminate the interference of CO.
-
Ozone & VOC: Convert ozone into oxygen, catalytically oxidize VOC into carbon dioxide and water.
